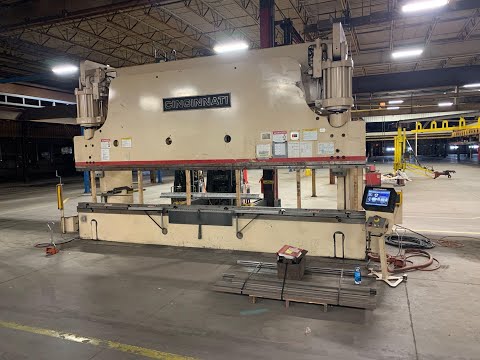

CINCINNATI INC 500FM-8 | Press Brakes

Description

Year 2007 Make: Cincinnati Model: 500PF X 18' Serial Number: 53865 Note: Upgraded Cincinnati Touch Screen Control Retrofit in 2020 Capacity: 500 Ton Overall Length of Bed & Ram: 22' Distance Between Housing: 18'6" Stroke of Ram: 18" Throat: 14.5" Max Open Height: ________ Max Ram Down Speed: 143 in/min Max Ram Forming Speed: 29 in/min Max Ram Up Speed: 146 in/min Ram Tilt Limit 1" Encoder Separation: 211.50" CNC Powered Back Gauge: 48" Operators Pedestals Station with Touch Screen: Yes Dual Electric Foot Trip: yes Front Light Curtains: Merlin ISB Motor: 30HP 460/3/60 Includes: Tote of New Hydraulic Oil (only used for Video), Pallet of brake dies and (3) 18" Risers, Available Manuals, DVD Software & thumb drive. Location: Fargo, ND 58102 Inspection: by appointment only, machine can be viewed under power. Contact ryan@framfram.com for inspection info. Removal: Must be removed by March 12, 2021. Rigging: This press can be disassembled and loaded for an estimated $11,500 by Kanga Machinery, LLC 701-899-0543 or you can use your own rigger. Weights Ram 25,300 lbs Bed 28,340 lbs Housings: 11,810 lbs each Tank: 7,200 lbs Total 89,687 lbs
