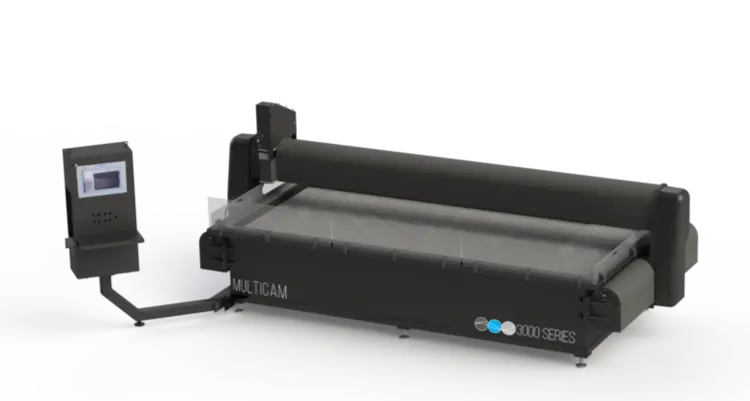

If you need to cut a wide variety of materials, you’re in the right place when looking at the Multicam 3000 Series CNC Waterjet. With waterjet machining, you get an impeccably accurate cut without an edge impacted by heat.
EZ Control G-Code and EZ Suite software ensures smooth and accurate operation by all your employees. Forklift tubes are built right in the 3000 Series for easy transport. Also, if you need to make a pure water cut that doesn’t require abrasive, you can make the transition fast.
You get 8 different options for customization to choose from so you can meet all your cutting applications. With a cut speed of 1,500 IPM and rapid traverse speed of 2,100 IPM the 3000 Series Waterjet works quickly enough to get your project done by your deadline, without sacrificing cut quality.
But, the real reason you’d get the 3000 Series CNC Waterjet is for its versatility in cutting applications. You can cut any material accurately, and without a heat-affected edge, ranging from steel to stone or plastic. And you can cut for any industry, starting with simple sign making and structural steel and getting as precise as aerospace.
25mm linear bearing profile rails
Z-axis clearance: 10”
Z-axis travel: 8”
Cut speed: 1,500 IPM
Rapid traverse speed: 2,100 IPM
Repeatability: +/- 0.001”
Drive system X and Y axis: linear rack and pinion
Drive system Z axis: precision ball screw
50 HP
Table sizes: 60” x 60” to 80” x 144”
Rapid traverse: 2,100 IPM
Repeatability: +/- 0.001”
Weight: 3,900 lbs to 6,900 lbs
STANDARD FEATURES
MultiCam EZ Control®, EZ G-Code and EZ Suite® software
All-steel, stress- relieved, integral water tank design
Three-side cutting tank access
Integrated fork lift tubes
Heavy channel guttering for water runoff and significantly increased machine rigidity
Dual-side, brushless digital AC servo drives
Fast transition between pure water and abrasive cutting
Weir settling tank and sump pump
Integrated PC with 19” LCD monitor
Full range of KMT intensifiers
(Features subject to change without notice)
OPTIONS
Single or dual abrasive head assemblies
Up to four pure water heads
Pneumatic drill
Integrated CNC control air conditioner
Chiller for intensifier
Abrasive removal systems
Air ballast water-leveling system
Closed-loop filtration system
(Options subject to change without notice)
