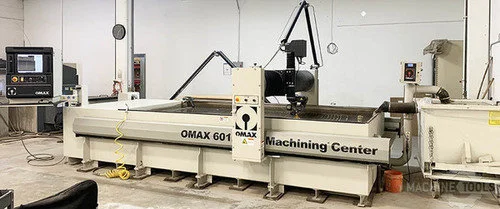

OMAX 60120 Waterjet Cutter
Have one to sell?
1 available
Omax 60120 5' x 10' Precision Waterjet, Omax EndroMax 4060V 40 HP Variable Frequency Drive Pump, Tilt-A-Jet Taper Compensation Head, 600 Lbs Hopper, SRS Garnet Removal System, 2019, Under 1,500 Hours
Table Size: 77” x 144”
Cutting Capacity: 62” x 126”
Parking Area for Carriage for Easy Loading from Front, Side, or Top of Table
Table Support Load: 400 Lbs Sqr/Ft
Material Support Slats: 4” x 1/8” Galvanized
Drive System: Closed Loop Vector Linear Drive System
OMAX EnduroMax Pump Horsepower: 40 HP 3/60/460 Volt
Pump Pressure: 60,000 PSI
Nozzle Config: 0.014” Orifice, 0.030”/4” Mixing Tube
Garnet Feed System: Gravity Feed 25 lbs. Hopper with 600 Lbs Abrasive Bulk Hopper
Computer: PC Based w/ Monitor, Keyboard, Mouse
Software: Omax Intelli-Max Control Software
Footprint of Tank with Controller: 18’9”L x 9’2”W
Ceiling Requirement – 10’
Weight: 6,200 Lbs.
Operating Weight: 23,200 Lbs.
•Omax EnduroMax 4060V Variable Frequency Drive High Efficiency Pump
•Tilt-A-Jet Taper Compensation Head
•OMAX Intelli-MAX CAD/CAM Control & Software
•PC Based Control
•SRS Variable Speed Solids Removal System with 1 Cu/yd Hopper
•600 Lbs Abrasive Hopper
•Exclusive Omax Intelli-TRAX Drive System Developed Exclusively for the Waterjet Environment
