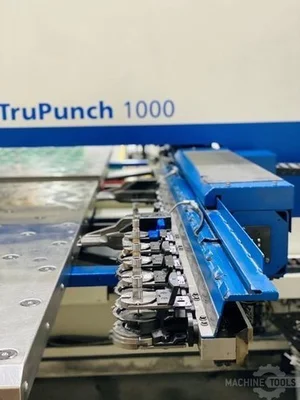

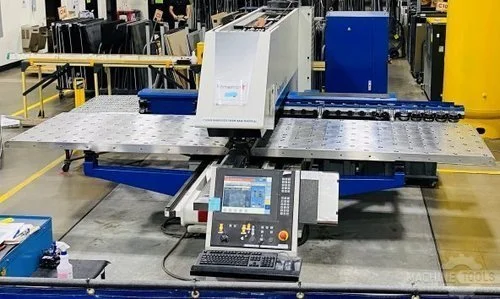

TRUMPF TRUPUNCH 1000 Turret Punch
Have one to sell?
1 available
19 TON TRUMPF TRUPUNCH 1000 CNC PUNCH PRESS MFG: 2007 - APPROXIMATELY 37,000 HOURS - NEW LINEAR AMPLIFIER IN 2019
Model/Configuration: TruPunch 1000
Rated Tonnage: 19
Number of Stations: 15
Maximum Hole Diameter: 3"
Autoindex
Number of Stations: 15, 150
w/multitool
Maximum Hole Diameter: 3"
Rotation Speed: 180 RPM
Accuracy on 1-in. Centers: +/-.004
Strokes per Minute, Nibbling: 600
Workpiece
Maximum Material Thickness: .250"
Maximum Weight: 330 lbs.
Throat Depth: 50"
Table Travel Dimensions
X x Y: 50" x 80"
Table Speed Motion
X, Y, Diagonal: X = 3,149 IPM
Y = 2,165 IPM
D = 3,820 IPM
