NRM 40" WIDE SHEETLINE | Extruders

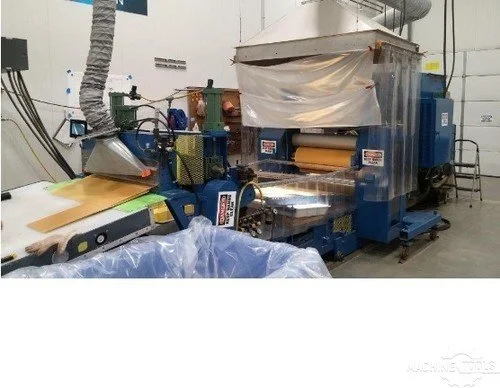

NRM 40" Wide Sheetline
Extruder NRM
Pacemaker 70 24/1
Screw Size 3.5"
L/D Ratio 24:1
Water Cooled Yes
Vented No
Number of Cooling Zones 5
Gearbox Ratio 14.91:1
Horsepower 75 HP AC Motor & Drive
Drive Emerson Unidrive SP4403
Control Digital Temperature Control Panel
Power Requirement 230v / 460v - 3 ph
Material Ran 50% PE & 50% Filler (Ion Exchange Resin)
Die: 40" Extrusion Die Rework
Chill Rolls: Top Roll
Dimensions 41" W x 8"
Diameter, 2nd & 3rd Roll 41" W x 12" Diameter
Independent Drives Yes
Chain Driven Yes
Controller Automation Direct
Rubber Pull Rolls: Dimensions 41" x 8" Diameter
Cross Cutting Saw Blade 12" Diameter
