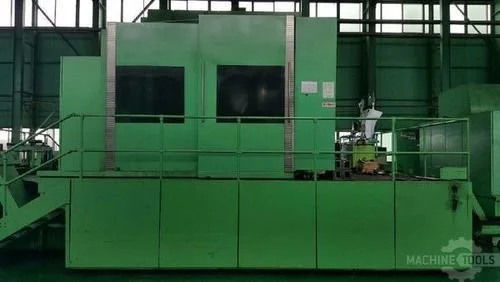

2005 DMG MORI DMU 340P | Multitasking Machining Centers

Description

DMG (DECKEL MAHO) DMU 340P UNIMOULD PORTAL CNC UNIVERSAL 5-AXIS MACHINING CENTE Featuring: * Heidenhain i TNC 530 CNC Control System * 60 Position Automatic Tool Changer * NC Rotary Table – 2,600 x 2,200 mm Surface – 17 Ton Capacity * 5-Axis NC Control Swivel Milling Head B-Axis * AC servomotor with 2-stage gear and automatic gear shifting NC Rotary Table Clamping Surface 2,600 x 2,200 mm Angle Measuring System Heidenhain RCN 723 Resolution of Measuring System 0/001 deg Carrying capacity of the table 16000 kg Max. Workpiece Dimension Φ3500 x 1650mm Rapid Feeds X-axis 60m/min Y-axis 30m/min Z-axis 40m/min B-axis 14rpm C-axis 5rpm Set-Up Mode X,Y,Z-axis 20-2000mm/min. Main Drive 6,300rpm Feed Spindle 12,000 rpm Torque: See attached diagram Motor power: See attached diagram
