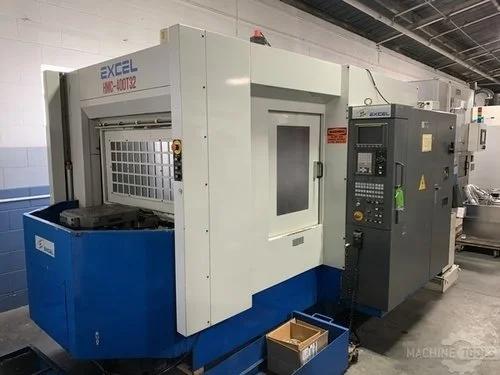

1998 EXCEL HMC400T32 | Horizontal Machining Centers

Table Size: 15.75" x 15.75"
Table Load: 880 lbs
X-Axis Travel: 24"
Y-Axis Travel: 17.7"
Z-Axis Travel: 20"
B-Axis Travel: Table Indexing: 0.001 Degree
Distance Between Table Top Surface and Spindle Center Nose: 1.97" x 19.7"
Distance Between Table Center and Spindle Nose: 5.91" - 25.98"
Rapid Traverse Rate (X/Y/Z): 1259.8 IPM
Cutting Feed rate: 0.04 - 314.96 IPM
Spindle Taper: NT-40
Spindle Speed Command: Direct 5 Digit S Command
Spindle Speed Range: 12,000 RPM
Spindle Motor: 20 HP
Tool Selection System: Random Memory/Bi-Direction
Tool To Tool: 2 Seconds
Tool Positions: 32+1
Tool Diameter: 3.74"
Tool Length: 12.59"
Tool Weight: 17.6"
Air Pressure: 71.1 PSI
Tool Holder: BT 40 / CT 40
Power Supply: 220V, 3 Ph, 50Hz
