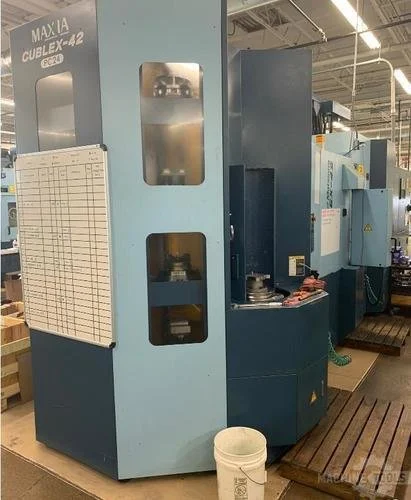

2008 MATSUURA CUBLEX-42 | Multitasking Machining Centers

Have one to sell?
(269) 426 5101
Email@Domain.com
1 available
Have one to sell?

Overview

Type:
Multitasking Machining Centers
Manufacturer:
MATSUURA
Model:
CUBLEX-42
Year:
2008
Stock #:
131
Status:
For Sale

Description

MATSUURA CUBLEX-42

X20"508 mm
Y28"711.2 mm
Z20"508 mm
Power15 hp11.2 kW
RPM20,000 RPM20,000 RPM
# ATC320320
# Axis55
ControlCNC (SIEMENS 840D)CNC (SIEMENS 840D)
Dimensions212" x 98" x 121"212" x 98" x 121"

X: 20 inches
Y: 28 inches
Z: 20 inches
# Axis: 5
Power: 15 horsepower
RPM: 20000
# ATC: 320
Taper: HSK-A63W
CNC Control: yes
Type of CNC Control: MATSUURA SIEMENS 840D
Dimensions: 212" x 98" x 121"
Table Working Surface: 11.81 inches
Max Table Load: 440 pounds
A-Axis Trunnion Tilt Range: - 110 - + 10°
C-Axis Table Rotation Positioning Degrees: 360
Rapid Traverse X/Y/Z (IPM): 1968.5

MATSUURA SIEMENS 840D CNC CONTROL
TOWER PALLET SYSTEM
24- PALLETS
TOTAL SPLASH GAURD
SYNCHRONIZED TAPPING
IPC FUNCTION
C-AXIS OIL COOLER
COOLANT UNIT
CHIP FLUSH
SPINDLE OVERLOAD PROTECT
SPINDLE THERMAL DISPLACEMENT COMPENSATION SYSTEM
WORK LIGHT
ATC AUTO DOOR
AD-TAP FUNTION
SPINDLE OIL COOLER
AUTO GREASE SUPPLY UNIT
SPIRAL CHIP CONVEYOR
MOVABLE MANUAL PULSE GENERATOR
ALL AVAILABLE MANUALS
