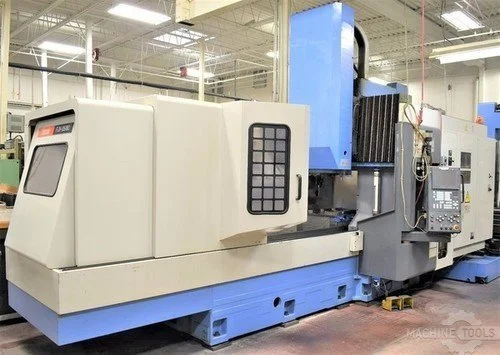

1998 MAZAK FJV-35/80 | Gantry Machining Centers (incld. Bridge & Double Column)
Have one to sell?
1 available
High-precision, high-productivity, double-column vertical machining center with enhanced performance, Intelligent Functions and rigid machine construction. Its special design ensures extremely high-precision machining over extended periods of operation by eliminating the spindle overhang often seen in C-frame vertical machining centers. Furthermore, its ergonomic design ensures convenient loading/unloading of large workpieces and overall ease of operation.
TABLE SIZE -------------------------------- 30" X 88"
TABLE TRAVEL ---------- ( X AXIS ) -------- 78.74"
HEAD CROSS TRAVEL ----- ( Y AXIS ) -------- 31.49"
HEAD VERTICAL TRAVEL -- ( Z AXIS ) -------- 23"
DISTANCE SPINDLE NOSE TO TABLE TOP -------- 7.8" - 30.9"
DISTANCE BETWEEN COLUMNS ------------------ 34.65"
TABLE LOAD CAPACITY ----------------------- 6,510 LBS.
RAPID TRAVERSE RATE --- ( X AXIS ) -------- 1260 IPM
RAPID TRAVERSE RATE --- ( Y AXIS ) -------- 945 IPM
CUTTING FEED RATES ---- ( Z AXIS ) -------- TO 708 IPM
SPINDLE NOSE ------------------------------ CAT #50 TAPER
SPINDLE SPEED ----------------------------- TO 6,000 RPM
NUMBER OF RANGES -------------------------- 2
TOOL MAGAZINE ----------------------------- 30 ATC
MAIN DRIVE MOTOR -------------------------- 35 HP A.C.
APPROXIMATE MACHINE WEIGHT ---------------- 31,973 LBS
APPROXIMATE MACHINE DIMENSIONS ------------ 251"(LR) X 106"(FB) X 120"(H)
MAZATROL MAZATROL PC-FUSION-CNC 640M
