2009 PROMAC ZEPHYR VTR | Universal Machining Centers

Have one to sell?
(269) 426 5101
Email@Domain.com
1 available
Have one to sell?

Overview

Type:
Universal Machining Centers
Manufacturer:
PROMAC
Model:
ZEPHYR VTR
Year:
2009
Stock #:
134
Status:
For Sale

Description

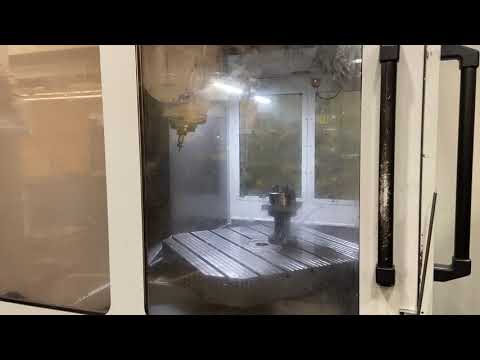

Promac Zephyr VTR 1.0 5-Axis CNC Vertical Mill, Heidenhain TNC530, 20K Spindle, 72"/39"/39" Travel, 32 ATC, Scales, B-Axis Head, Hi-P CTS, New Spindle (2017), HSK63, 2009

X55.118"1,400 mm
Y39.37"1,000 mm
Z31.496"800 mm
# Axis33
Power40 hp29.8 kW
RPM20,000 RPM20,000 RPM
# ATC3232
TaperHSK 63HSK 63
Table-W47.244"1,200 mm
Table-L39.37"1,000 mm
ControlCNC (Heidenhain TNC 530)CNC (Heidenhain TNC 530)

# Axis 5
Type of CNC Control Heidenhain TNC 530
Table Working Surface 39" x 39"
Max Table Load 5500 pounds
X 72 inches
Y 39.35 inches
Z 39.37 inches
C-Axis Table Rotation Positioning Degrees 0.001
Rapid Traverse X/Y/Z (IPM) 1575
Power 40 horsepower
Table Surface To Spindle Nose 44.57
RPM 20000
# ATC 32
Taper HSK 63
Max Tool Length In Carousol 9.84"
Max Rotatable Part Size 55" Corner to Corner

New Spindle in 2017
Hi Pressure Coolant Thru Spindle
Conveyor
Scales
Heidenhain Probe and Tool Length Measurement
B Axis Head
