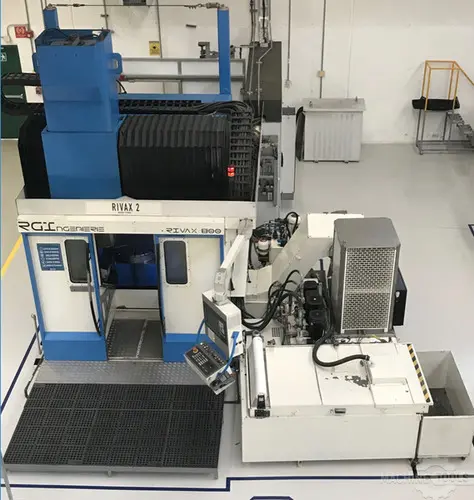

2013 RIVAX 800 | Universal Machining Centers

X - Cross section  1030 mm (-1030/0)
Y - Longitudinal  1200 mm (-1200/0)
Z - Vertical  750 mm (-750/0)
A - Cradle tilt D ° 150 (-135 ° / + 15 °)
C - Table rotation D ° nx360

Rapids and Axis
Max speed X-Y- Z mm / min 30,000
Max speed A-C RPM 3.3-1000
Effort in X-VY / Z N 20,000

MILLING SPINDLE
Vertical position
CAPTO C8 cone
Power kW 30
Max speed RPM 8000
Max torque N.m 260 at 1190 rpm
Refrigeration Yes
Tool clamping force
N IMA TECNO Standard
Watering from the center Yes
Max pressure in tool center
Bars // l / min 65 // 35

TURNING SPINDLE
Vertical position
Max speed RPM 1000
Speed ​​range 1
Torque N.m 2806 in S1 - 2423 at 0 rpm
Power kW 46.99
Tool center pressure Bars // l / min 80 // 35

MEASURING SYSTEM
XYZ rule resolution  1
RCN 226 +/- 5 "encoder (A axis)
RCN 226 +/- 5 "encoder (C axis)

TOOL CHANGER
Number of tools 60 + 4
Tool length max. mm 600
Tool diameter max. mm 150
Max tool weight Kg 10

MILLING FUNCTION
Max tool length mm 600
Max tool diameter mm 100
Max tool weight kg 10
Peripheral watering bar - l / min 15 - 60
Tool center watering - l / min 65 - 35
Blowing cone milling tool bar 6
Mechanical tool clamping (+ air 6 bar)
Tool clamping (hydraulic) bar 100
Air curtain bar spindle 1 / 1.5

TURNING FUNCTION
HP SNECMA COROMANT CAPTO C8 special clamping unit 203 830 111 N 1385
Max tool length mm 300
Max tool radius for inter machining mm 150
Max tool radius for external machining mm 100
Max tool weight kg 10
Tool center watering - l / min 350 - 35
Blowing cone lathe tool bar 2.5
Tool clamping (hydraulic) bar 80
Tool clamping (hydraulic) bar 80

WATERING / WASHING / COLD
Filtration  30

Temperature regulation ° C Differential
Bar wash - l / min 5 - 150

Motor cooling spindle bar - l / min 10 - 25
C axis motor cooling bar - l / min 10 - 25
Peripheral watering milling bar - l / min 14.5-60
Watering center milling tool bar - l / min 65 - 35
Cooling tool center turning bar - l / min 350 -35
