1982 CLAUSING 1300 | Engine Lathes

Have one to sell?
(269) 426 5101
Email@Domain.com
1 available
Have one to sell?

Overview

Type:
Engine Lathes
Manufacturer:
CLAUSING
Model:
1300
Year:
1982
Stock #:
144
Status:
For Sale

Description

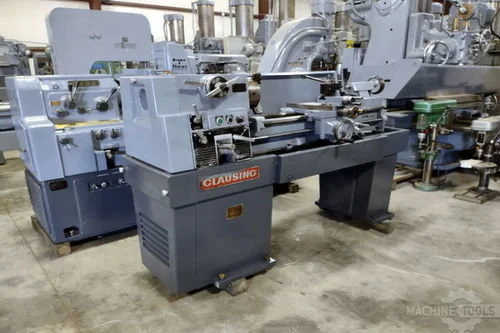

13" X 36" Used Clausing Engine Lathe

Swing13"330.2 mm
Centers36"914.4 mm
Spindle Bore1.25"31.75 mm
Power5 hp3.7 kW
RPM2,000 RPM2,000 RPM
Swing Over Cross Slide7.6"193.04 mm
Dimensions6'L x 36 "W x 60"H6'L x 36 "W x 60"H
Weight1,500 Lbs.1,500 Lbs.

Swing 13"
Swing Over Cross Slide 7.6"
Distance Between Centers 24"
Chuck Size 8" 3 Jaw Chuck
Spindle Nose D-1-4
Spindle Bore 1.375"
Spindle Speeds Inf Variable) 45 - 2,000 RPM
Longitudinal Feeds (54) 0.00067 - 0.0374 IPR
Cross Feeds (54) 0.00033 - 0.0187 IPR
Threads (54) 4 - 224 TPI
Tailstock Spindle Taper .#3 MT
Main Motor 5HP, 220/440v, 3ph
Approximate Dimensions 6'L x 36 "W x 60"H
Approximate Weight 1,500 Lbs.

Tailstock
Threading
Chip Pan
Splash Guard
