MAZAK INTEGREX E-500H-S-3000U | 5-Axis or More CNC Lathes
Have one to sell?
1 available

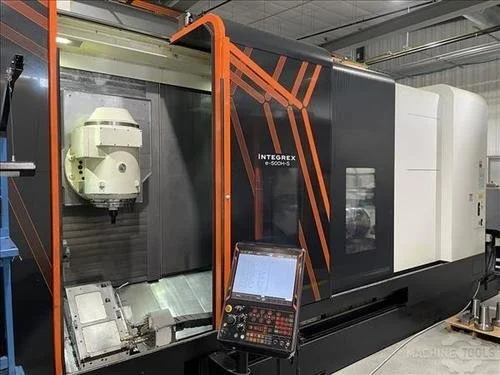

MAZAK INTEGREX E-500H-S 3000U MULTI-TASKING CNC MACHINING & TURNING CENTERMAZAK INTEGREX E-500H-S 3000U MULTI-TASKING CNC MACHINING & TURNING CENTER
Max. Swing: 32.3"
Swing Over Cross Slide: 32.3"
Max. Machining Diameter: 32.3"
Distance Between Centers: 118.1"
Hole Through Both Spindles: 4.1"
Spindle Bearing Inner Diameter (Both Spindles): 5.91"
Spindle Speeds (Both Spindles): 35 - 3300 RPM
Spindle Motor, 30 Min. / Continuous (Both Spindles): 40 HP / 30 HP
Milling Spindle Taper: CAPTO
Max. Milling Spindle Speed: 10,000 RPM
B-Axis Range: -30° - 120°
Steady Rest Clamping Range: 1.77" - 12.2"
Sub Spindle
Mazak Mazatrol SmoothX CNC Control
120-Position CAPTO Automatic Tool Changer w/ Touch Panel
SMW SLUX-Z-5 Steady Rest
(2) 21" Kitagawa B21 Chucks w/ High/Low Chuck Pressure System
Renishaw RMP600 Work Measuring System
Through Spindle Coolant
1000 PSI Mazak Superflow High Pressure Coolant System
Auto Door Start
Thread Point Compensation
Max. Tool Length Increased to 24"
