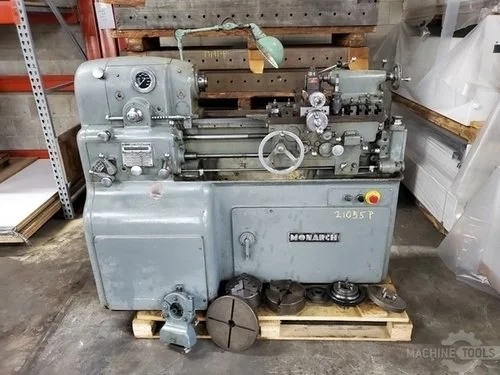

1962 MONARCH 10EE | Engine Lathes
Have one to sell?
1 available
Overall Machine is in Fair/Good condition; NOTE: 2 Original Thyratron C16J Tubes have replaced with updated SCISSO Controls-Solid State SCR (Silicon Controlled Rectifier ) Circuit. This drop in repacement for Thyratron tubes origibnally supplied by Monarch. Replacement is assembled from ROHS compliant & other lead free components
Swing: 12-1/2"
Swing Over Cross slide: 7-1/2"
Speed: 100 to 4000 RPM
Spindle Hole: 1-7/16"
Spindle Nose: D1-3 Camlock
Feeds(50) .500 to 16.1 Thous. Per Rev
Threads: (60) 3-184 TPI
7" 3-Jaw Chuck * 8" 4 Jaw Chuck* 11" Face Plate*3" Steady resw/Solid Supports)t*Aloris Tool Post w/7 assorted Holders*Live Center*Keyless Drill Chuck,*work Light. Spare tubes available, Machine taken from R & D shop
