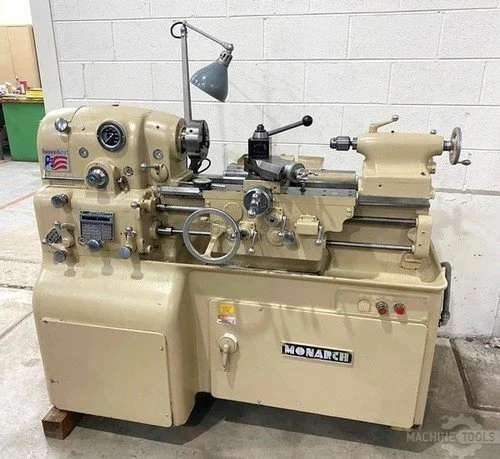

1992 MONARCH 10EE | Engine Lathes
Have one to sell?
1 available
No. EE, Monarch, 10"x20"cc, 12-1/2"Sw, 4K RPM, Inch Thread, Stdy Rest, Taper, '92
Swing Over Bed............12-1/2"
Swing Over Cross Slide............7-1/4"
Distance Between Centers............20"
Hole Through Spindle............1-3/8"
Center, Morse Taper............#2
Camlock Spindle Nose............3" D-3
Spindle Speeds............40 - 4000 RPM
Feeds Standard............0.0005 - 0.016 IPR (60)
Threads Standard............3 - 184 TPI (60)
Electrics............230V/3PH/60Hz
Footprint - Approximate............61" LR x 29" FB x 50" H
Weight - Approximate............3500 Lbs.
- Inch Threading
- Taper Attachment
- 6" Cushman 3-jaw Chuck
- 3 Point Steady Rest
- Tailstock (with Jacobs Chuck 1/2 Capacity)
- Aloris 2 Position Quick Change Tool Post, with (2) tool holders
- Solid State Controls
- Coolant System in Base
- Flame Hardened Bed Ways
