MONARCH 10EE | Engine Lathes
Have one to sell?
1 available

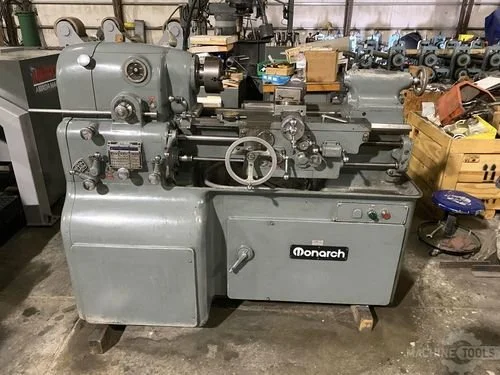

WE TAKE TRADES | 12.5" x 20" Monarch 10EE precision lathe; One owner machine; Original cabinet; Manuals; Spare control; Quick change tool post; 6" 4-jaw chuck; Steady rest; Follow rest; Work light; Thread dial; Collet closer & set of 5C collets
Swing over bedways: 12.5"
Swing over cross slide: 7-1/4"
Distance between centers: 20"
Spindle speeds: 25 to 4000 RPM
Hole through spindle: 1-13/32"
Center morse taper: #2
Range of threads: 3 to 184
Number of feed changes: 50
Bed width: 10.5"
Bed depth: 10.25"
Leadscrew diameter: 1"
Leadscrew pitch: 8 TPI
Tailstock spindle diameter: 1.75"
Tailstock spindle travel: 3.5"
Volts: 460
Phase: 3
Cycles: 60
Full load amps: 12
Largest motor rating: 8 DC
Approximate dimensions: 62" x 33" x 56" highÂ
Approximate weight: 3,450 lbs.
One owner machine
Original cabinet
Manuals
Spare control
Collet closer
Set of 5C collets
Quick change tool post
6" 4-jaw chuck
Steady rest
Follow rest
Work light
Thread dial
