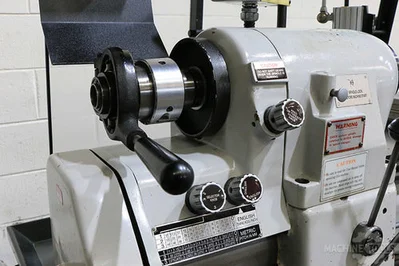

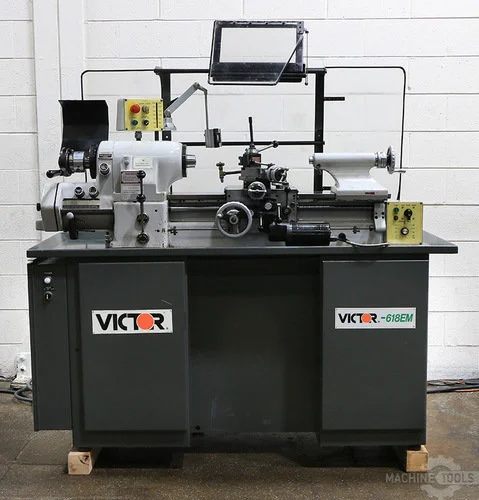

1990 VICTOR 618EM | Engine Lathes

CAPACITY
  W/ROUND TYPE 5C COLLETS ............. 1-1/16"
  W/STEP CHUCKS ....................... 1-1/16" TO 6"
  W/JAW CHUCKS ........................ 5"
  W/EXPANDING COLLETS ................. 3"
VARIABLE SPINDLE SPEEDS ............... 0 - 4,000 R.P.M.
HOLE THROUGH SPINDLE .................. 1-1/4"
SWING OVER BED ........................ 11"
SWING OVER CARRIAGE ................... 9"
SWING OVER CROSS SLIDE ................ 6"
DISTANCE BETWEEN CENTERS .............. 18"
COMPOUND SLIDE TRAVEL ................. 3"
CARRIAGE POWER FEED RANGE ............. 5/16 - 7 IPM
CROSS SLIDE POWER FEED RANGE .......... 3/16 - 4 IPM
TAILSTOCK SPINDLE DIAMETER ............ 1-3/8"
TAILSTOCK SPINDLE TAPER ............... #2 MT
INCH THREADING RANGE IN GEARBOX ....... (36) 11 - 108 T.P.I.
METRIC THREADING RANGE IN GEARBOX ..... (36) 0.275 - 2.7 MM
APPROXIMATE WEIGHT .................... 2,000 LBS.
