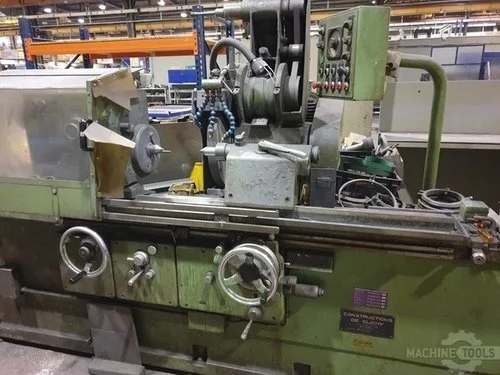

CONSTRUCTION DE CLICHY 5024 | Gear Grinders

Dimensions (l x w x h) (mm): 4080x1670x1900
Weight (kg): 5950
Tip height (mm): 230
Max. grinding diameter (mm): 450
Permissible warehouse weight (kg): 500
Distance between centers (mm): 1500
Table speed (m/min): 0,05 à 4
Max. grinding wheel diameter (mm): 455
Max. width of the grinding wheel (mm): 80
Quick release of the grinding wheel (mm): 50
Value of a division at the vernier (mm): 0,0005
Min. feed rate value for plunging (mm): 0,001
Orientation of the wheelhead (°): 60
Walrus cone of the coin-bearing doll: 6
Speed without steps (rpm): 15 a 150
Orientation of the headstock (°): 90
Min. internal diameter grindable (mm): 3
Max. internal grinding diameter (mm): 350
Motor power wheel headstock motor (hp): 10
Motor power inner spindle (hp): 2
Motor power hydraulic circuit of the screed (hp): 2
Table swivel (°): 9
Motor power for headstock (hp): 1
Watering pump power (hp): 0,33
Engine power hydraulic circuit vernier (hp): 0,75
