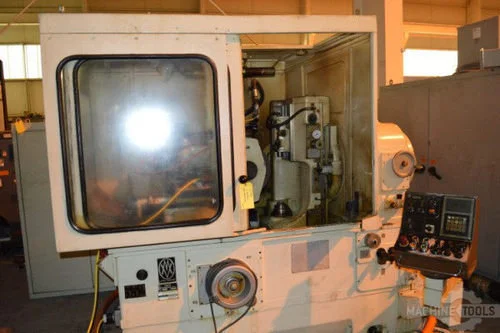

CSEPEL FKP326-10 | Gear Grinders
Have one to sell?
1 available
SUITABLE FOR THE PRECISION FINISH GRINDING OF EXTERNAL SPUR
AND HELICAL GEARS UP TO 12.6” (320MM) MAXIMUM GEAR DIAMETER,
INCLUDING ROOT RADIUS, MODIFIED INVOLUTES, AND CROWNED LEADS,
WITH A CONTINUOUS GRINDING (GENERATING) PROCESS, UTILIZING RIBBED
(WORM-TYPE) VITRIFIED GRINDING WHEELS.
Processing diameter: 320 mm
Tooth width: 150 mm
Modul range: 0.5 - 6
Slide stroke: 180 mm
Number of teeth: 10 - 260
Wheel speed: 1500 r/min
Max work-piece weight: 80 kg
Clamping length: 420 mm
Total power requirement: 26 kW
Dimensions: 3100x2400x2300 mm
Weight: 6500 kg
SPECIAL ANTI-FRICTION BEARINGS IN BOTH GRINDING AND WORK SPINDLE
FOR INCREASED WORKING LIFE, GUARANTEED ACCURACY AND LOW
MAINTENANCE.
MACHINE UTILIZING DOUBLE-START GRINDING WHEELS WHICH CAN BE DRESSED
EASILY AND ACCURATELY FOR HIGHER PRODUCTION.
DIAMOND DISC GRINDING WHEEL DRESSING DEVICE FAESSLER TYPE "DSA"
CAPABLE OF DRESSING BOTH SINGLE AND DOUBLE-START GRINDING WHEELS
PROGRAMMABLE AUTOMATIC GRINDING CYCLES FOR GRINDING A WIDE RANGE
OF PROFILES WITH MODIFICATIONS, INCLUDING CROWNING W/TIP & ROOT
RELIEF.
COOLANT EQUIPMENT COMPLETE WITH NECESSARY ELECTRICS
POWER FORCED LUBRICATION SYSTEM TO ALL WORKING ELEMENTS
ASSORTED GRINDING WHEEL FLANGES COMPLETE WITH WASHERS
SET OF CENTERS FOR HEADSTOCK AND TAILSTOCK
CYLINDRICAL WORK PIECE MANDREL WITH SPACER RINGS AND CLAMPING NUT
WHEEL BALANCING ARBOR
SET OF PRECISION CHANGE GEARS
OPERATOR'S WORK LAMP
HEIGHT SETTING GAUGE
FULL COMPLEMENT OF ELECTRICS (MOTORS/CONTROLS) W/OPERATOR'S CONTROL STATION
