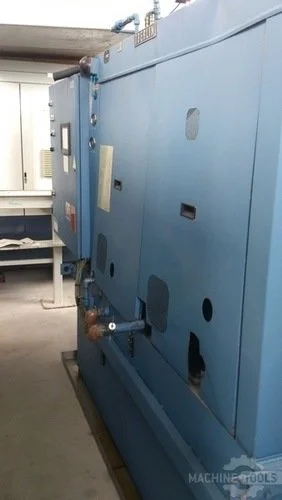

1997 GLEASON PHOENIX 200 HG | Gear Grinders
Have one to sell?
1 available
Gear grinding is effected either in single component operation using a conical cup wheel (Gleason 30°), or with a cylindrical cup wheel. These grinding wheels can be made of CBN, or of traditional dressable aluminium oxide material (question of cost). Grinding with a conical grinding wheel is of advantage with regard to heat build-up and quality of tooth contact pattern. Therefore these pairs of bevel gears (for automotive industry) can be generated in high quality with consistent accuracy, economically, and with short set-up times
Max. external Ø of workpiece 215 mm
Tooth profile, height x width 16 x 40.65 mm
No. of teeth 5 200
Max. tooth ratio 1 : 10
Grinding wheel Ø 51 190 mm
Grinding wheel speeds 1,000 6,000 rpm
X Axis (horizontal) 152 mm
Y Axis (vertical) 178 mm
Z Axis (slide base plate) 304 mm
Distance from middle of machine to middle of workspindle 115 mm
Axial speed 125 mm/sec
Workpiece speeds 0 30 rpmWorkspindle bore, conical 3 29/32 inch
Total electrical load 20 kW - 380 V 50 Hz
Weight, approx. 10,000 kg
* FANUC CNC Control, Model 150 MB, for 7 axes, with monitor and direct input. Automatic calculation of all workpiece and grinding parameters.
* Extensive coolant equipment with filter system, band filter, etc.
* Driven grinding wheel dressing device with CNC dressing control for automatic compensation of form and diameter after every dressing.
