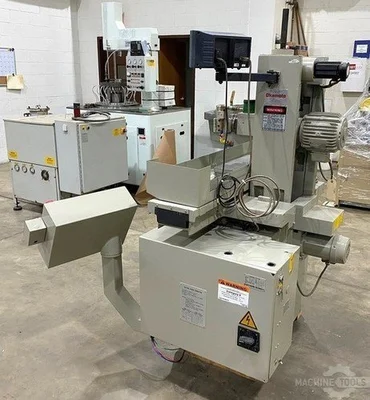

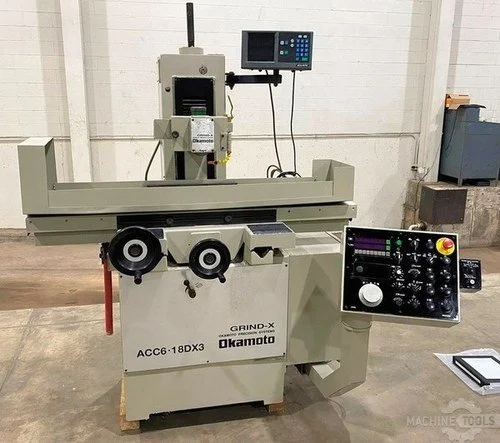

OKAMOTO ACC-6-18DX3 | Reciprocating Surface Grinders

Chuck Size............6" x 18"
Table:
- Working Surface............6" x 20"
- Movement - Maximum............6.9" x 20.8"
- Distance Under New 8" Wheel - Maximum............11.7"
- Weight Capacity (Including Chuck)............264 Lbs.
- T-slot Width............0.67"
Table Longitudinal Movement:
- Feed Rate............0.33 - 66 FPM
- Feed/Handwheel Revolution............4"
Crossfeed:
- Feed/Handwheel Revolution............0.10"
- Graduation - Minimum............0.0004"
- Continous Auto............0.5 - 13.1 FPM
- Step Auto............0.004" - 0.2"
- Motor............1 HP
Wheel Vertical Feed:
- Auto Downfeed Increment............0.00005" - 0.0015"
- Downfeed/Handwheel Revolution - Adjustable............0.001"; 0.01"; 0.1"
- Downfeed/Handwheel Graduation - Adjustable............0.00001"; 0.0001"; 0.001"
- Rapid............15.7 IPM
- Motor............0.5 HP AC Servo
Wheel:
- OD............8"
- Width............0.25" - 1"
- ID............1.25"
- Spindle Motor............2 HP
- Spindle Speed............3420 RPM
Floor Space - Catalog............77"(L-R) x 51"(F-B) x 78.5"(H)
Weight - Catalog............2420 Lbs.
