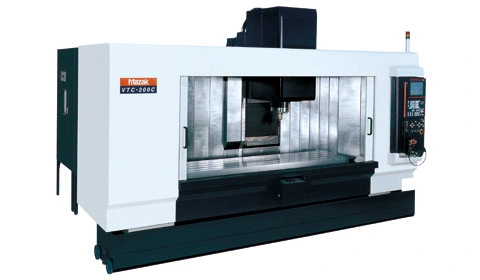

MAZAK VTC-200C | Vertical Machining Centers

Description

MACHINE DESCRIPTION:
The VERTICAL TRAVELING COLUMN (VTC) 200C Vertical Machining Center features a powerful 40 Taper spindle, full traveling column design and fixed table for machining of extremely long and heavy workpieces. Or with a table center partition the machine work envelop can be transformed into two separate work areas that allow the machine to be in cycle in one work area, while a part is being set up in the other work area. The machine also delivers fast rapid traverse rates to reduce non-cut times.

MACHINE CHARACTERISTICS:
Long fixed table design
Optional table partition available
Standard 12,000-rpm CAT 40-taper spindle
1,181 ipm rapid traverse rate
24-tool (48 optional) storage capacity
Automatic tool changer
Maximum table load of 2,200 lbs.
