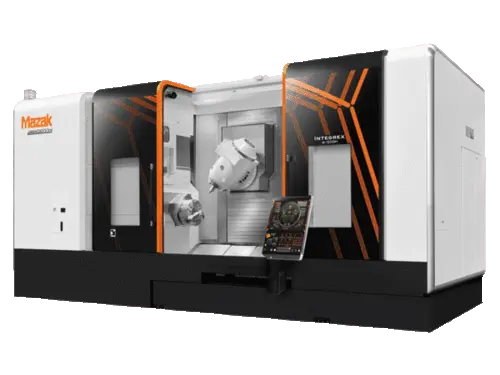

MAZAK INTEGREX E-500H-1500U | 5-Axis or More CNC Lathes

Description

MACHINE DESCRIPTION:
INTEGREX e-500H Multi-Tasking Machining Center is a complete fusion of CNC turning center and machining center, forming by far the most advanced Multi-Tasking machine in the industry.

Complete all operations in a single setup – turning, milling, boring, drilling and more. The machine delivers precision and performance for heavy, large-diameter, shaft-type workpieces for a wide range of industry applications.

The machine is equipped with high-output integral spindle motor with two gear ranges for a wide scope of heavy-duty machining. A drop-worm system that performs with the same positioning accuracy as a machining center rotary table drives the machine's C-axis (0.0001-degree increments).

The machine's high performance milling spindle is a 50 taper, single spindle turret with automatic tool changer. A heavy-duty roller gear cam makes up the framework of the B-axis that provides indexing or contouring for maximum tool point agility.

Fully programmable, servo driven, steady rest and tailstock ensure safe and accurate machining of long workpieces.

MACHINE CHARACTERISTICS:
Milling spindle B-axis travel -30 ~ 210 degrees (.0001 degree min index angle)
Optional 40HP 7.2” spindle bore
Completely programmable servo driven steady rests (option)
Full 5-axis contouring standard on most models
80 or 120 automatic tool changer options
Optional 40" long boring bar stocker (2-bar) for deep boring applications
