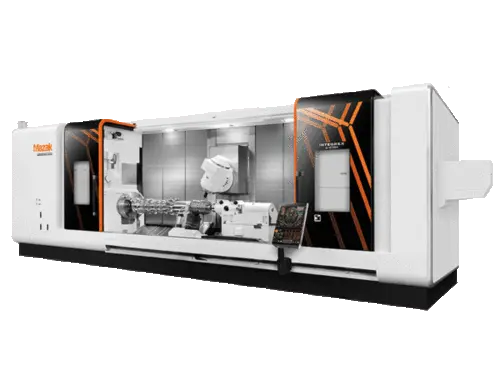

MAZAK INTEGREX E-670H-3000U | 5-Axis or More CNC Lathes

Description

MACHINE DESCRIPTION:
INTEGREX e-670H Multi-Tasking Machining Center is a complete fusion of CNC turning center and machining center, forming by far the most advanced Multi-Tasking machine in the industry. Complete all operations in a single setup – turning, milling, boring, drilling and more. The machine delivers precision and performance for heavy, large-diameter, shaft-type workpieces for a wide range of industry applications.

The machine is equipped with a high-output integral spindle motor featuring two gear ranges for a wide scope of heavy-duty machining applications. A drop-worm system with the same positioning accuracy as a machining center rotary table drives the the C-axis (0.0001-degree increments).

The high performance milling spindle is a 50 taper, single spindle turret with automatic tool changer. A heavy-duty roller gear cam makes up the framework of the machine's B-axis that provides milling spindle indexing or contouring and maximum tool point agility.

Fully programmable, servo driven, steady rest and tailstock ensure safe and accurate machining of long workpieces.

MACHINE CHARACTERISTICS:
Milling spindle b-axis travel -30 ~ 210 degrees (.0001 degree min index angle)
60-hp, 10.2"-bore spindle (option)
Optional fully programmable servo driven steady rests
Full 5-axis contouring standard on most models
40-tool automatic tool changer standard ( No.50 Big Plus) – 80 or 120 tool options
Available spindle connections ( MAS BT/ CAPTO C6/ HSK )(option)
Multiple bed lengths available – 120”, 160"and 240"
Optional 40" or 60" long boring bar stocker (3-bar) for deep
