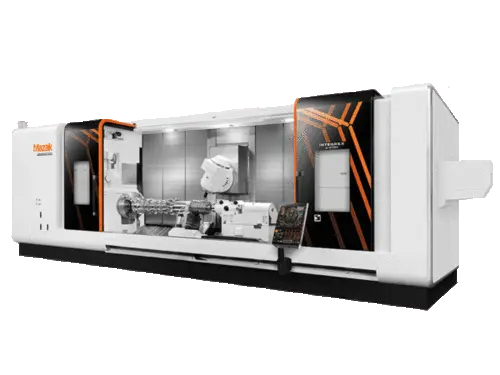

MAZAK INTEGREX E-670H-S-4000U | 5-Axis or More CNC Lathes

Description

MACHINE DESCRIPTION:
INTEGREX e-670H-S Multi-Tasking Machining Center is a complete fusion of CNC turning center and machining center, forming by far the most advanced Multi-Tasking machine in the industry.

Complete all operations in a single setup – turning, milling, boring, drilling and more with Mazak's DONE IN ONE capability. The machine delivers precision and performance for heavy, large-diameter, shaft-type workpieces for a wide range of industry applications.

The INTEGREX e-670H-S main and second spindles are high-output integral spindle motor types with two gear ranges for a wide scope of heavy-duty machining applications. A drop-worm system that delivers the same positioning accuracy as a machining center rotary table drives the machine's C-axis (0.0001-degree increments). The machine's second spindle is mounted on a series of heavy-duty roller guided trucks for effortless part transfer of large diameter applications.

The high performance milling spindle is a 50 taper, single spindle turret with automatic tool changer. A heavy-duty roller gear cam makes up the framework of the B-axis that provides milling spinde indexing or contouring for maximum tool point agility.

Fully programmable, servo driven, steady rests ensure safe and accurate machining of long shaft workpieces.

MACHINE CHARACTERISTICS:
Milling spindle B-axis travel of -30 ~ 210 degrees (.0001 degree min index angle)
Optional fully programmable servo driven steady rests
Full 5-axis contouring standard on most models
40-tool automatic tool changer standard ( No.50 Big Plus) – 80 or 120 tool capacities optional
Available spindle connections ( MAS BT/ CAPTO C6/ HSK )(option)
Multiple bed lengths available – 120”, 160"and 240"
Optional 39.4"-long tools automatically changed through the tool magazine for deep boring/drilling applications
