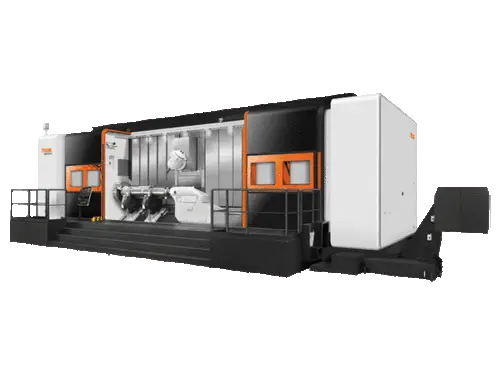

MAZAK INTEGREX E-800H-8000U | 5-Axis or More CNC Lathes

Description

MACHINE DESCRIPTION:
Perfect for industries that include aerospace, construction machinery and energy, the INTEGREX e-800H is the company’s biggest Multi-Tasking machine for extra-large part production.

The machine has the power, torque and accuracy to achieve unbeatable metal removal capabilities when processing workpieces with load capacities of up to 15 tons (including workholding).

It also productively performs all cutting operations – turning, milling, boring, drilling and more – in a single machine setup, or what Mazak refers to as DONE IN ONE® processing.

Other available options that further increase the machine’s versatility and productivity include a long boring bar system with a maximum tool length of 60”, a long drill holder that drills up to 31” and a long milling tool that can reach a maximum length of 49” and perform right-angled milling inside a bore.

MACHINE CHARACTERISTICS:
Powerful 60-hp, 700-rpm turning spindle with 10,104 ft-lbs. of torque
Drop-worm system drives the C-axis that indexes in 0.0001-degree increments
High-performance 50-taper 10,000-rpm milling spindle with maximum 50-hp motor output
10,000-rpm, 50-hp milling spindle with B-axis tilt of -30/+120 degrees
Tool storage capacities of 40, 80 or 120 tools ensure continuous operations
Mazak MX Hybrid Roller Guide System delivers durability and reliability for long-term accuracy
Bed lengths ranging from 160” to 320”
Steady rests are available to support workpiece diameters up to 31.5"
