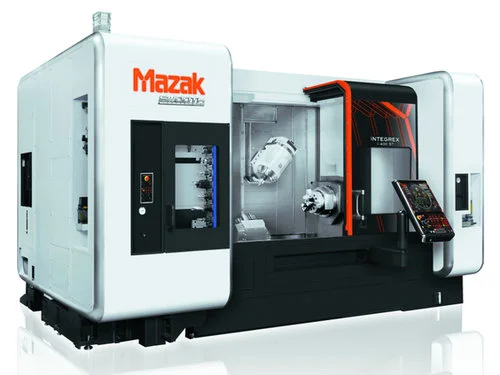

MAZAK INTEGREX I-400ST-1500U | Multitasking Machining Centers

Description

MACHINE DESCRIPTION:
The INTEGREX i-400ST advanced Multi-Tasking machine delivers maximum versatility and throughput for medium to large complex parts. It combines the capabilities of a high-powered turning center and full-function machining center to produce parts in single setups. This machine configuration features second turning spindle (S) for DONE IN ONE® machining and lower turret (T) - minimizing fixtures, tools, handling and non-cut time.

Additionally, the machine brings dramatic reductions in lead-time and improves part accuracy through the elimination of multiple setups. With full 5-axis capability, the machine easily processes fully prismatic parts from solid blocks or castings (chucked or bar fed work), round parts, or sculptured parts such as aerospace components.

MACHINE CHARACTERISTICS:
Milling spindle travel -30 ~ 210 degrees (.0001 degree min index angle)
Optional 20k RPM (15 HP) milling spindle available
Full C-axis contouring (.0001 degree minimum index)
Productive second turning spindle for DONE IN ONE part processing
Added lower turret for machining at either main or second turning spindle
Available spindle connections ( KM63/ CAPTO C6 / HSK A63 )
36-tool ATC standard ( HSK A63 ) – 72 or 110 tool options available
