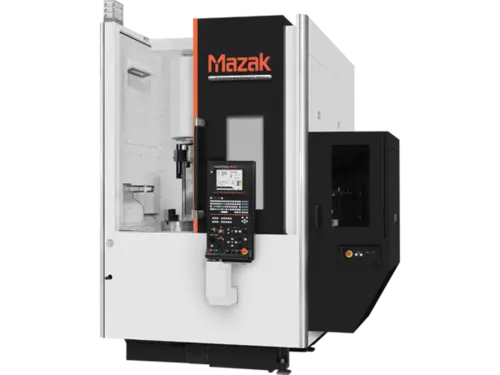

MAZAK MEGATURN SMART 600M | CNC Lathes
Have one to sell?
New
MACHINE DESCRIPTION:
Perfect for industries requiring heavy metal removal, the MEGATURN SMART 600M turning center brings powerful performance and high productivity to large part production. The machine is designed to provide the fastest spindle speeds and rapid traverse rates in its class.
As an M configuration, the machine has a rotary tool spindle that allows it to perform secondary machining operations such as milling and drilling. As a result, shops can process parts in a single machine cycle for an overall boost in productivity and workpiece accuracy.
The MEGATURN SMART 600M employs a high-torque integral spindle/motor and high-rigidity drum turret to easily tackle workpieces with maximum machining diameters of 23.62" and workpiece heights of 21.65", depending on chuck specifications. The standard chuck size for this machine is 18", with 21" and 24" options available.
MACHINE CHARACTERISTICS:
High-torque integral spindle/motor for heavy-duty machining
Rigid 12-position drum turret provides rapid tool indexing
10-hp rotary tool milling capabilities improve overall productivity
Accurate C-axis indexing
Optional automatic tool changer adds flexibility for all static tooling
Linear roller guides provide rigidity and positioning accuracy
Efficient chip disposal prevents heat from affecting the machine bed
Vertical design allows for easy workpiece loading/unloading
Available in mirrored left/right configurations for easy workpiece transfer
