MAZAK QUICK TURN NEXUS 550 MY | CNC Lathes
Have one to sell?
New
MACHINE DESCRIPTION:

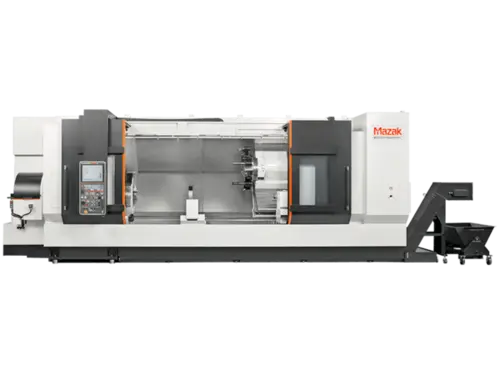

The QUICK TURN NEXUS (QTN) 550 MY Multi-Tasking turning center with large spindle bore options pack the speed, power and precision that’s required for the heavy-duty machining of long, large workpieces, especially those produced for the energy and heavy equipment industries.
As an “MY” configuration, the machine features a turret with live tooling and a Y-axis to perform off-centerline milling, drilling and specialty threading operations in addition to its advanced turning capabilities. This Multi-Tasking functionality allows users to productively process parts in single setups, also known as DONE IN ONE® processing.
Additionally, the QTN 550 MY pairs with an optional, highly unique tailstock design that combines a standard tailstock with a long boring bar (LBB) to achieve deep-hole boring depths of 46".
MACHINE CHARACTERISTICS:
Advanced gear-driven spindle headstock offers high-torque power for heavy metal/alloy cutting operations
Spindle through-bore sizes up to 14.7" for machining versatility
Spindle offers C-axis contouring in 0.0001-degree increments, providing the best positioning accuracy in its class
12-position turret with live tooling for Multi-Tasking functionality
Rigid, double-slide Y-axis construction withstands high cutting forces
MX Hybrid Roller Guide System delivers durability and reliability
Optional automatic tool eye system detects tool wear and damage
Advanced CNC technology offers easy programming and fast job setup
Optional LBB/tailstock combination offers deep-hole boring capability
Pairs with a variety of chip conveyor system configurations for effective chip management
