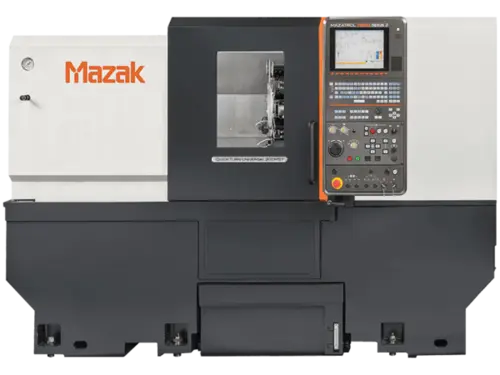

MAZAK QUICK TURN UNIVERSAL 200MSY | CNC Lathes

Description

MACHINE DESCRIPTION:
Our simple but innovative QUICK TURN UNIVERSAL (QTU) 200MSY raises the standard when it comes to quality in value-based Multi-Tasking machines.

This highly versatile, small-footprint CNC turning center combines a live rotary tool turret for milling, drilling and tapping operations in a single set-up with a second turning spindle for complete DONE IN ONE® performance. The machine’s Y-axis functionality extends its versatility even more by enabling movement above and below centerline.

The highly versatile 200MSY brings maximum efficiency, reliability and value to those processing precision parts up to 13.5" in diameter and 14.5" (300 bed) and 23.5" (500 bed) long.

MACHINE CHARACTERISTICS:
Integral spindle/motor headstock provides high power and stability
C-axis headstock design positions parts to within 0.0001°
Second turning spindle offers DONE IN ONE part production
Milling turret with a rotary tool spindle provides Multi-Tasking capabilities
Y-axis functionality offers movement above and below spindle centerline
Fast and accurate indexing is possible through Mazak’s proven Roller Cam Drive System
Programmable NC servo-driven tailstock reduces setup times and cycle times
Rigid, low center of gravity bed design ensures stable performance
One-piece Z-axis way cover simplifies chip disposal
Easily integrates with various forms of automation for even higher productivity
