MAZAK SLANT TURN 600-2000U | CNC Lathes

Description

MACHINE DESCRIPTION:

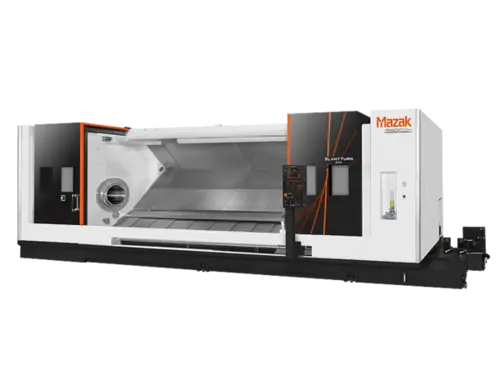

The SLANT TURN 600 is a powerful, heavy-duty,high torque, big-bore turning center for large part turning applications, such as oil field pipe /casings, pipeline control valves, turbine components and aircraft engine parts.

The ST-600 offers maximum machining lengths up to 160", and depending on chuck size, maximum machining diameters to 36", for long, large-diameter parts. The standard spindle bore is 14.7" diameter and can handle large diameter pipe and other components that required front and rear chucking.

MACHINE CHARACTERISTICS:
High torque, high Horsepower geared headstocks for heavy-duty cutting
Various front and rear chuck options available
14.7" diameter Spindle Bore
12-position non-lift drum turrets for rapid tool indexing
NC servo-driven tailstocks
Mazak MX Hybrid Roller Guide System
