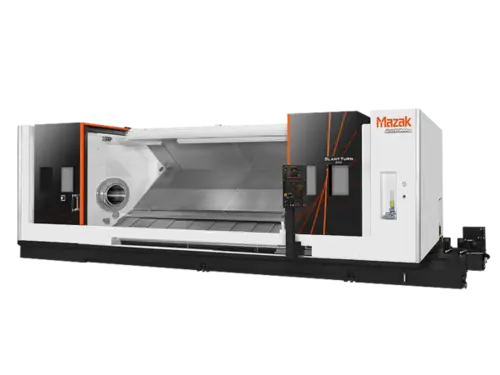

MAZAK SLANT TURN 600M-4000U | CNC Lathes

Description

MACHINE DESCRIPTION:
The SLANT TURN 600M is a powerful, high torque, heavy-duty, big-bore turning center for large part turning applications, such as oil field pipe /casings, pipeline control valves, turbine, components and aircraft engine parts.

It offers maximum machining lengths up to 160", and depending on chuck size, maximum machining diameters to 36", for long, large-diameter parts. The spindle bore is 14.7" diameter and can handle large diameter pipe and other components that required front and rear chucking. The machine also offers powerful rotary tool capability for secondary drilling and milling operations on centerline.

MACHINE CHARACTERISTICS:
High torque, high horsepower geared headstocks for heavy-duty cutting
Spindle C-axis positioning for slotting cuts and precision drilled holes
Various front and rear chuck options available
14.7" diameter spindle bore
12-position non-lift turrets for rapid tool indexing
Powerful rotary tool turret for secondary mill/drill operations
NC servo-driven tailstocks
Mazak MX Hybrid Roller Guide System
