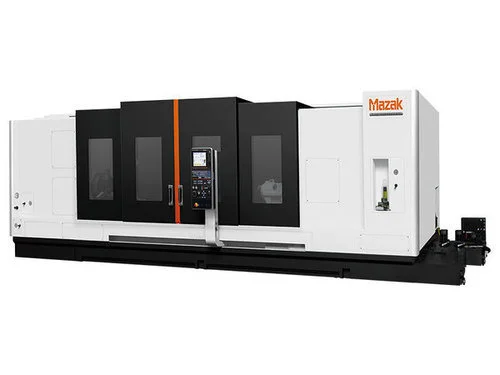

MAZAK SLANT TURN NEXUS 500M-2000U | CNC Lathes

Description

MACHINE DESCRIPTION:
The SLANT TURN NEXUS 500M is a powerful, high torque, heavy-duty, big-bore turning center for large part turning applications, such as oil field pipe /casings, pipeline control valves, turbine, components, and aircraft engine parts. The machine offers maximum machining lengths up to 160", and depending on chuck size, maximum machining diameters to 36", for long, large-diameter parts. It also offers rotary tool capability for secondary drilling and milling operations on centerline.

MACHINE CHARACTERISTICS:
High torque, high horsepower geared headstocks for heavy-duty cutting
12-position non-lift turrets for rapid tool indexing
Spindle C-axis positioning for slotting cuts and precision drilled holes
Powerful rotary tool turret for secondary mill/drill operations
NC servo-driven tailstocks
Mazak MX Hybrid Roller Guide System
MATRIX NEXUS 2 CNC
