MAZAK SLANT TURN NEXUS 550M-4000U | CNC Lathes

Description

MACHINE DESCRIPTION:

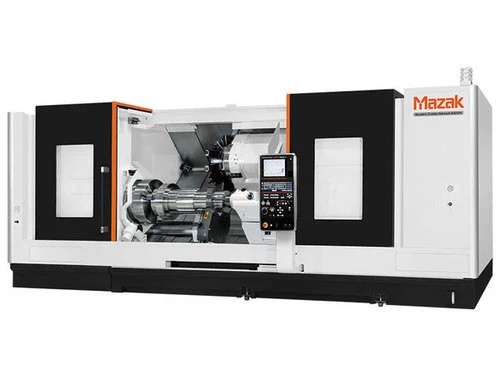

The SLANT TURN NEXUS 550M is a powerful, heavy-duty, high torque, big-bore turning center for large part turning applications, such as oil field pipe /casings, pipeline control valves, turbine, components and aircraft engine parts. The machine offers maximum machining lengths up to 160", and depending on chuck size, maximum machining diameters to 36", for long, large-diameter parts. It also offers rotary tool capability for secondary drilling and milling operations on centerline.

MACHINE CHARACTERISTICS:
High torque, high horsepower geared headstocks for heavy-duty cutting
Spindle C-axis positioning for slotting cuts and precision drilled holes
Various big bore spindles available, with front and rear chuck options
Rotary Tool Mill/Drill (M) machine configurations available
12-position non-lift drum turrets for rapid tool indexing
NC servo-driven tailstocks
Mazak MX Hybrid Roller Guide System
MATRIX NEXUS 2 CNC
