MAZAK VORTEX HORIZONTAL PROFILER 160 | Horizontal Machining Centers

Description

MACHINE DESCRIPTION:

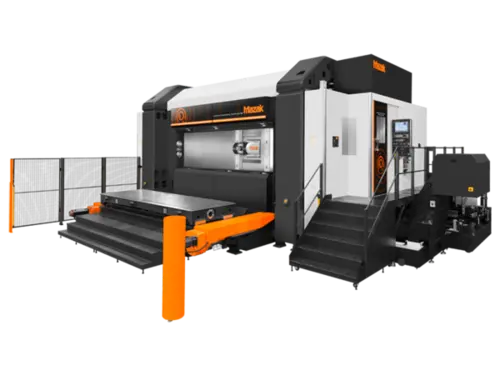

The VORTEX HORIZONTAL PROFILER (HP) 160 horizontal machining center with full 5-axis capabilities brings unmatched power, speed and accuracy to manufacturers processing medium and large aerospace parts.

Featuring a 60-hp, 26,000-rpm HSK-A63 spindle, the machine cuts a wide range of challenging materials with ease. An optional 30,000-rpm spindle is available for shops that require even higher cutting speeds. The standard tool storage capacity for this machine is 30 tools, while an optional 60-tool magazine is also available for increased machining versatility.

The machine has a large 157” x 49" vertically oriented worktable that accommodates a maximum load capacity of 6,615 pounds. It is also possible to position the worktable horizontally for quick, easy part loading and setup.

Symmetrical and rugged in construction, the machine's special box-type design integrates its base, column and table to ensure consistent, highly rigid cutting performance. An advanced coolant and chip disposal system further stabilizes the machine's cutting processes by minimizing heat displacement.

MACHINE CHARACTERISTICS:
Integral motor-spindle design rotates at exceptionally high speeds
Tool magazine capacity of up to 60 tools offers machining versatility
Fast rapid traverse rates ensure high levels of productivity
Rotary/tilt table has a +/- 200º C-axis rotation and a +/- 100º A-axis tilt
50-rpm direct-drive motors power both C and A axes
Integrated base, column and table construction ensures high rigidity
Advanced coolant system offers efficient chip evacuation
Optional rotary-type two-table changer further boosts productivity
